📲 Multitier Architecture Xamarin Application

Contents

1. Before we start
2. IDEs and plugins used
3. Architecture
4. DB model

Before we start

IDEs and Frameworks used

IDEs and plugins:

• Visual Studio 2019 Community Edition [ download ]
• JetBrains Reshaper Ultimate [ download ]

Frameworks:

• Entity Framework Core 6 (for SQLite)

Frameworks are available via NuGET Package Manager.

Architecture

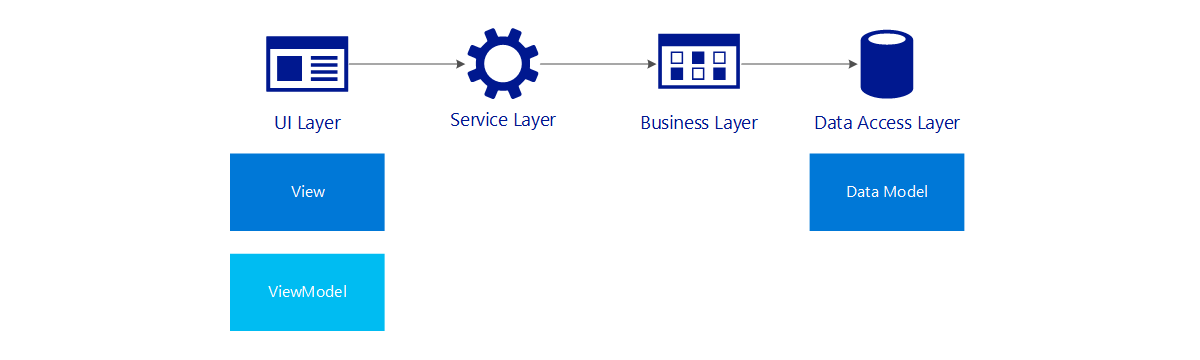

Application is based on multitier architecture:

• UI Layer
• Service Layer
• Business Layer
• Data Access Layer

DB model

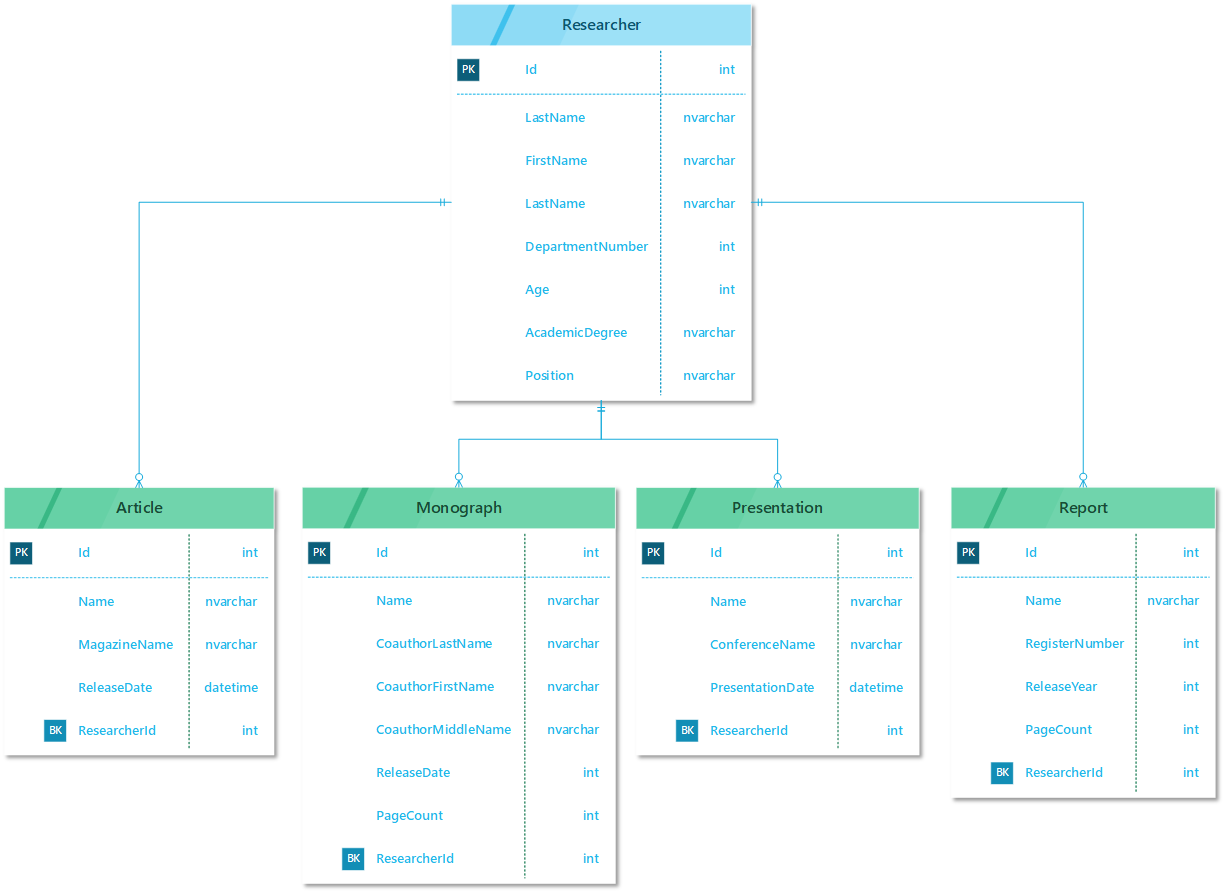

I used Entity Framework Core and Code First approach to create model as shown above. Here's my DbContext with OnConfiguring() method:

public ResDbContext()
{
    Batteries.Init();
    Database.EnsureCreated();
}

It's neccessary to use Batteries.Init() for EF Core.

protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
{
    var connectionStringBuilder = new SqliteConnectionStringBuilder { DataSource = "Researchers.db" };
    var connectionString = connectionStringBuilder.ToString();
    var connection = new SqliteConnection(connectionString);
    optionsBuilder.UseSqlite(connection);
}

Comparing to Entity Framework you don't have to modify config files for connection string so you basically just use OnConfiguring() method for it.
